The difference between
liquid silicon machine and general machine:

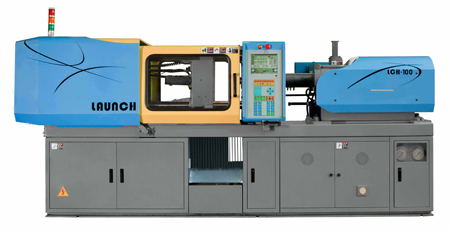

Liquid silicon machine uses liquid fluid as the
material feeding type, which is different from
other injection machines. It must mix two liquid
types in high speed mixing action until semi solid
condition then charge to send the material to
the barrel and standby for injection. Meanwhile,
the material in the barrel must be kept in low
temperature condition, therefore, a water chilling
system must be installed with the barrel to control
the temperature under 20°C. Usually, thermoplastic
material is heated up in barrel then injected
to the mold for cooling to solid formation. In
contrast, liquid silicon becomes solid after heating.
Material must be injected into mold then cool
the fixed mold to room temperature, while heat
the moving mold between 150 to 170°C in order
to solid form the material then open the mold
to bring the product out.
Making a mold:
Making a mold requires someone who has more experience,
since liquid silicon flows pretty good that the
mold must be well tighten to prevent product flashing.
If you are making children, medical, or feeding
related products, the mold material is very important
to prevent bad material entering the products.
Evolution of liquid injection:
Solid formation was the primary formation method
for silicon injection machine in early stages.
However, it not only take longer time to solid,
but also the product gets flashing that requires
much human resources trimming. Moreover, the scrap
and leftover material after processing cannot
be recycled, which causes waste and loss. Liquid
type silicon injection molding machine specialists
in liquid molding. Simply mix third liquid content
to produce different color products.
Liquid silicon injection molding technology runs
automatically, which not only saves much human
resources but also minimizes material scrap and
cost; it is a popular type for the future.
The liquid silicon also can be used in many fields
based on its stability, chemical proof, high temperature
proof..., etc., which is irreplaceable. Silicon
products have the characteristics of easy to clean,
anti-slip, antirust, prevent leakages, foldable
and non stick specification, and can be made into
various of products you can image, like below:
■ Medical silicon
product:
Silicon mask, breath bag /mask and other silicon
medical parts
■ Baby care product:
Silicon nipple, spoon, button, baby tooth brush,
protect pad, and baby silicon bottle
■ kitchen accessories:
Toast plate, heat protect glove, cup pad, scaling
cover, silicon jelly product glove, mobile food
container including silicon cup, bowel, plate,
and cleaner container based on the characteristic
of foldable that saves space when travelling.
■ Industrial parts
and accessories:
Silicon washer, 'O' ring, scaling pad, silicon
sole of shoe, laptop heat transfer pad, hand phone
protect jacket, earphone, silicon ultra thin optical
mouse pad, car high voltage coil protector.
■ Other silicon products:
- Silicon pen holder
- Silicon bangle
- Silicon label, key chain and many more.
|
